Ring rolling machine


   Usage :

D51A and D51B ring rolling machines have been widely used for ring like semifinished of bearing forging auto-gear & flange.

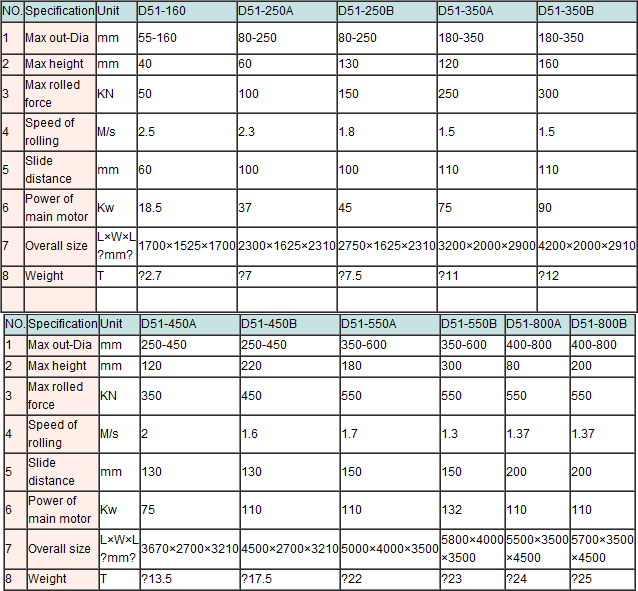

The main technical parameter : -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

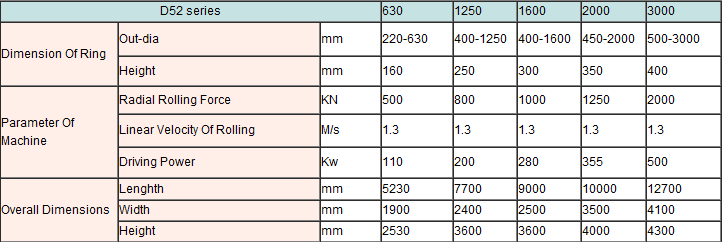

D52 series of Radial ring rolling machine is contrlled by PLC,the end of ring is not rolleded.When rolling to adopt open roll or close roll.The dimension of ring is displayed on the digital-displaymeter.

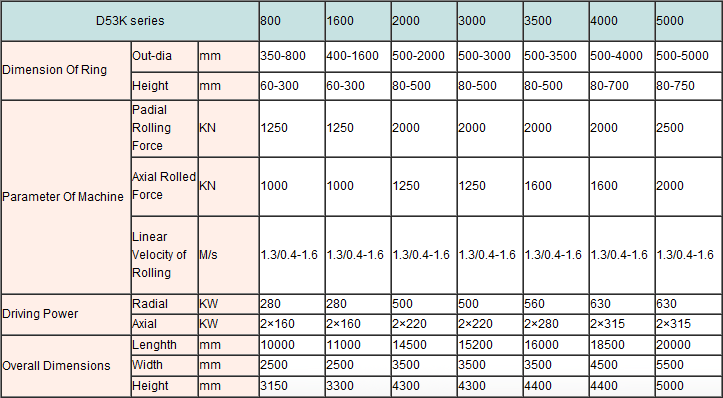

D53K series of Radial and Axial Ring Rolling machine,to adopt CNC technology to roll the ring by radial and axial together.Only to enter the dimensions of rinf,semifinished ring,toll and material specification,then it can be rolled automaticlly.The size of ring and status of machine will be displayed on CRT.
